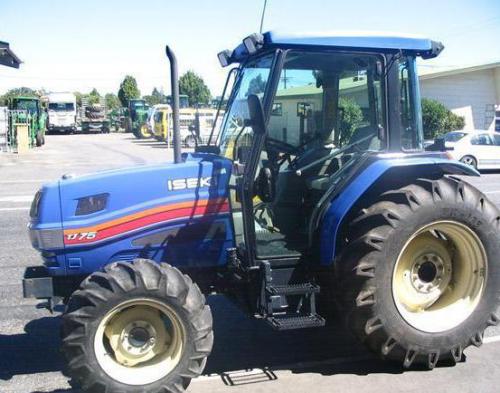

Iseki TJ75 Tractors

Iseki TJ75
Power: 74 hp
Date of manufacture :
2003 - 2009
Production
Manufacturer:Iseki
Type:Utility tractor
Variants
TJ75:wheel tractor
TJ75C:half-track
Iseki TJ75 Power
Engine:74 hp
55.2 kW
Iseki TJ75 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:power
Brakes:wet discs
Cab:Cab with air-conditioning.
Transmissions:24-speed 8-speed power shift
 12-speed 4-speed power shift
Hydraulics
Total flow:7.7 gpm
29.1 lpm
Tractor hitch
Rear Type:JIS1
 JIS2
Rear lift (at ends):5732 lbs
2600 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Engine RPM:566@2600
733@2600
1061@2600
Dimensions & Tires
Wheelbase:84.7 inches
215 cm
Weight:5600 lbs
2540 kg
Front tire:9.5-22
Rear tire:12.4-36
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
Battery AH:72
