Power: 154 hp Date of manufacture : 1984 - 0000

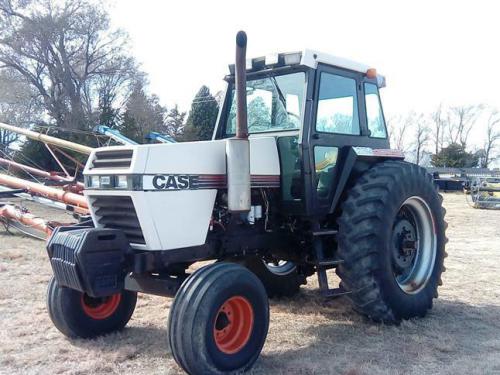

Production Manufacturer: J.I. Case Type: Row-Crop tractor Factory: Racine, Wisconsin, USA J.I. Case 2294 Power Engine: 154 hp 114.8 kW Drawbar (claimed): 116 hp 86.5 kW PTO (claimed): 130 hp 96.9 kW Drawbar (tested): 115.35 hp 86.0 kW PTO (tested): 131.97 hp 98.4 kW J.I. Case 2294 Engine Mechanical Chassis: 4x2 2WD   4x4 MFWD 4WD Steering: power Brakes: differential hydraulic wet disc Cab: Four-post ROPS. Silent Guardian cab optional with air-conditioning. Transmission: 12-speed three-speed power shift Photos J.I. Case 2294 photos... Capacity Fuel: 65 gal 246.0 L   25 gal 94.6 L *Optional auxiliary tank Hydraulic system: 25 gal 94.6 L Hydraulics Type: closed center Capacity: 25 gal 94.6 L Pressure: 2250 psi 155.1 bar Valves: 2 to 4*3 only with 4WD Pump flow: 23 gpm 87.1 lpm Steering flow: 8 gpm 30.3 lpm Steering press.: 2000 psi 137.9 bar Tractor hitch Rear Type: II Rear lift (at 24"/610mm): 6600 lbs 2993 kg Power Take-off (PTO) Rear PTO: independent Clutch: hydraulic Rear RPM: 540/1000 Dimensions & Tires Wheelbase: 104 inches 264 cm   110 inches 279 cm *Optional long wheelbase. Weight: 11070 to 14390 pounds Front tire: 11.00x16 Rear tire: 18.4-38 (2WD) Full dimensions and tires ... 2294 Serial Numbers Location: Inside cab or on right-front frame 1984: 9931808 1985: 9938113 1986: 9941577 1987: 9945448 1988: 9949350 how to read serial numbers... Electrical Ground: negative Charging system: alternator Charging amps: 72   105*Optional Battery volts: 12

J.I. Case 2090	Power: 120 hp[P]	Date of manufacture : 1979 - 1983

J.I. Case 2094	Power: 127 hp	Date of manufacture : 1984 - 0000

J.I. Case 2096	Power: 128 hp[P]	Date of manufacture : 1984 - 1985

J.I. Case 2290	Power: 143 hp[P]	Date of manufacture : 1979 - 1983

J.I. Case 2294	Power: 154 hp	Date of manufacture : 1984 - 0000

J.I. Case 2390	Power: 178 hp[P]	Date of manufacture : 1979 - 1983

J.I. Case 2394	Power: 197 hp	Date of manufacture : 1984 - 0000

J.I. Case 2470	Power: 213 hp	Date of manufacture : 1972 - 1979

J.I. Case 2470B	Power: 212 hp	Date of manufacture : 1979 - 1983
