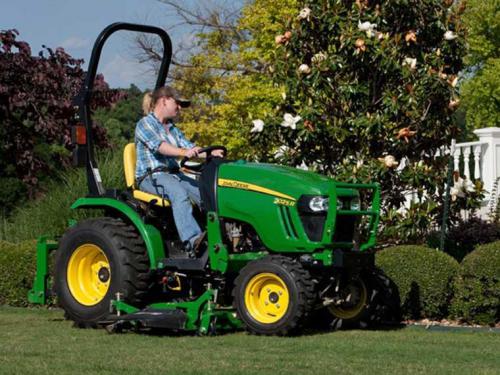

John Deere 2025R Tractors

John Deere 2025R
Power: 25 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:John Deere
Type:Compact Utility tractor
Factory:Augusta, Georgia, USA
Original price:$14,434 (2013 )
Original price:$15,348 (2014 )
John Deere 2025R Power
Engine (gross):24.2 hp
18.0 kW
Engine:25 hp
18.6 kW
PTO (claimed):18 hp
13.4 kW
John Deere 2025R Engine
Mechanical
Chassis:4x4 MFWD 4WD
Final drives:spur gear
Differential lock:standard
Steering:power
Brakes:wet disc
Cab:Two-post foldable ROPS.
Transmission:hydrostatic
Photos
John Deere 2025R photos...
Capacity
Fuel:6.1 gal
23.1 L
Hydraulic system:2.6 gal
9.8 L
Front axle:0.9 qts
0.9 L
Hydraulics
Type:open center
Capacity:2.6 gal
9.8 L
Pressure:2421 psi
166.9 bar
Pump flow:3.4 gpm
12.9 lpm
Total flow:5.6 gpm
21.2 lpm
Steering flow:2.2 gpm
8.3 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift (at ends):1433 lbs
650 kg
Rear lift (at 24"/610mm):1150 lbs
521 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:wet disc
Rear RPM:540
Mid PTO:independent
Mid RPM:2000
Dimensions & Tires
Wheelbase:63 inches
160 cm
Weight:1660 lbs
752 kg
2025R Serial Numbers
Location:Right side of tractor frame, above and behind the front axle.
photo of 2025R serial number

Electrical
Ground:negative
Charging system:alternator
Charging amps:20
Charging volts:12
Battery CCA:500
Battery volts:12
