| Production |
| Manufacturer: | John Deere
|
| Type: | Row-Crop tractor
|
| Factory: | Waterloo, Iowa, USA
|
| Total built: | 14,869 (total row-crop)
|
| | 8,023 (gas Syncro)
|
| | 5,516 (diesel Syncro)
|
| | 817 (diesel Power Shift)
|
| | 513 (gas Power Shift)
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Open operator station.
|
| Transmissions: | 8-speed partially synchronized
|
| | 8-speed full power shift
|
| Photos |

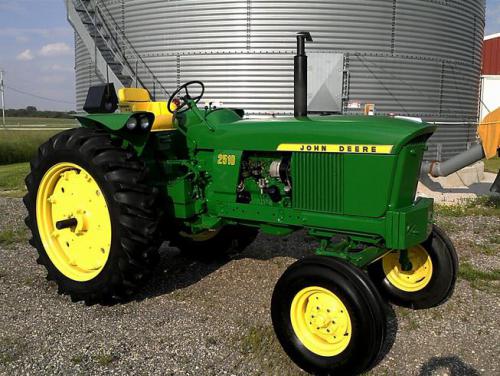

| | John Deere 2510 photos... |
| Capacity |
| Fuel: | 26 gal
98.4 L
|
| Hydraulic system: | 11 gal
41.6 L (SyncroRange)
|
| | 14 gal
53.0 L (PowerShift)
|
| Hydraulics |
| Type: | closed center constant pressure
|
| Capacity: | 11 gal
41.6 L (SyncroRange)
|
| | 14 gal
53.0 L (PowerShift)
|
| Pressure: | 2250 psi
155.1 bar
|
| Valves: | 1 or 2
|
| Oil type: |
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | position and lower-link draft control
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000 (1.375)
|
| | 1000 (1.375)
|
| Engine RPM: | 540@2100
1000@2100
|
| Front PTO: | optional
|
| Front RPM: | 1000
|
| Engine RPM: | 1000@2100
|
| Dimensions & Tires |
| Wheelbase: | 90 inches
228 cm
|
| Weight: | 6200 to 6745 pounds
|
| Front tire: | 6.00-16
|
| Rear tire: | 13.6-38
|
| 2510 Serial Numbers |
| Location: | Serial number plate on the rear of the John Deere 2510, above the PTO shaft.
|
photo of 2510 serial number
| | 1966: | 1000
|
| 1967: | 8958
|
| 1968: | 14291
|
| Final: | 16501
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Batteries: | 1 (gas)
|
| | 2 (diesel)
|
| Battery volts: | 12
|
| Battery AH: | 75
|
|
