John Deere 3005 Tractors

John Deere 3005
Power: 27 hp
Date of manufacture :
2008 - 2012
Production
Manufacturer:John Deere
Type:Compact Utility tractor
Factory:Augusta, Georgia, USA
John Deere 3005 Power
Engine (gross):27.5 hp
20.5 kW
PTO (claimed):24 hp
17.9 kW
John Deere 3005 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:manual
 hydrostatic power*Power steering standard with four-wheel drive, optional with two-wheel drive.
Brakes:dry shoe
Cab:Two-post ROPS
Transmission:8-speed sliding gear

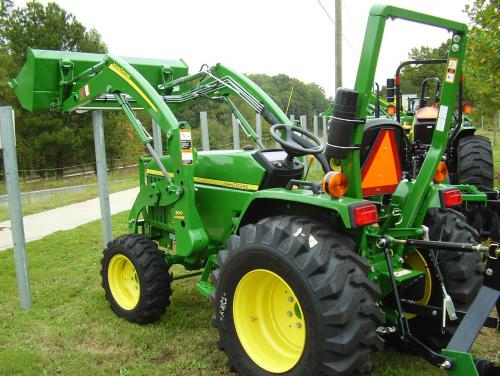

Photos
John Deere 3005 photos...
Capacity
Fuel:6.3 gal
23.8 L
Hydraulic system:4 gal
15.1 L
Hydraulics
Type:open center
Capacity:4 gal
15.1 L
Pressure:2050 psi
141.3 bar
Valves:2
Pump flow:5.8 gpm
22.0 lpm
Total flow:10.3 gpm
39.0 lpm
Steering flow:4.5 gpm
17.0 lpm
Tractor hitch
Rear Type:1
Rear lift (at 24"/610mm):815 lbs
369 kg
Power Take-off (PTO)
Rear PTO:live (two-stage clutch)
Rear RPM:540
Mid PTO:optional
Mid RPM:2100
Dimensions & Tires
Wheelbase:61 inches
154 cm
Weight:1920 to 2105 pounds
Front tire:5.00-15
Rear tire:11.2-24 (2WD)
Full dimensions and tires ...
3005 Serial Numbers
Location:On rear of tractor, below the PTO.
2008:000100
2009:200001
2010:300001
2011:410001
2012:510001

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:40
Battery CCA:500
Battery volts:12
