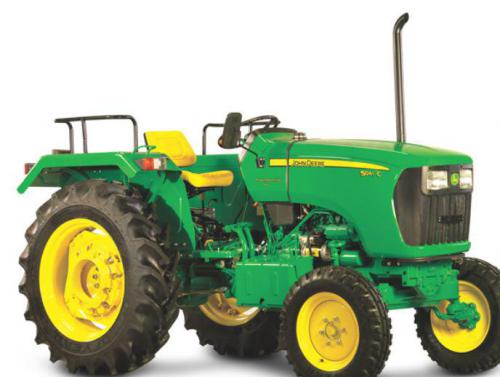

John Deere 5041C Tractors
 |
|
Power: 41 hp
Date of manufacture : 2011 - 2014 |
| Production |
| Manufacturer: | John Deere
|
| Factory: | Pune, Maharashtra, India
|
| John Deere 5041C Power |
| Engine: | 41 hp
30.6 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Steering: | power*Optional
|
| Brakes: | wet disc
|
| Cab: | Open operator station.
|
| Transmission: | 8-speed collar shift gear
|
| Hydraulics |
| Type: | open center
|
| Pump flow: | 5.3 gpm
20.1 lpm
|
| Steering flow: | 4.7 gpm
17.8 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position and draft control
|
| Rear lift (at ends): | 2205 lbs
1000 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540 (1.375)
|
| Engine RPM: | 540@1575
|
| Dimensions & Tires |
| Wheelbase: | 73.6 inches
186 cm
|
| Weight: | 3814 lbs
1730 kg
|
| Front tire: | 6.0x16
|
| Rear tire: | 12.4x28
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 40
|
| Battery volts: | 12
|
| Battery AH: | 88
|
|
