| Production |
| Manufacturer: | John Deere
|
| Type: | Utility tractor
|
| Factory: | Pune, Maharashtra, India
|
| Original price: | $18,800 (2007 )
|
| John Deere 5303 Power |
| Engine: | 64 hp
47.7 kW
|
| PTO (claimed): | 55 hp
41.0 kW
|
| PTO (tested): | 56.42 hp
42.1 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | differential wet disc
|
| Cab: | Foldable two-post ROPS.
|
| Transmissions: | 9-speed
|
| | 9-speed partially synchronized
|
| Photos |

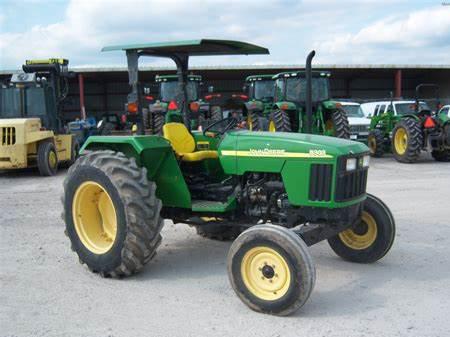

| | John Deere 5303 photos... |
| Capacity |
| Fuel: | 19 gal
71.9 L
|
| Hydraulic system: | 10 gal
37.9 L
|
| Front axle: | 5.3 qts
5.0 L
|
| Front hubs: | 0.85 qts
0.8 L (each)
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 10 gal
37.9 L
|
| Pressure: | 2800 psi
193.1 bar
|
| Valves: | 1 or 2
|
| Pump flow: | 9.5 gpm
36.0 lpm
|
| Total flow: | 16.3 gpm
61.7 lpm
|
| Steering flow: | 6.8 gpm
25.7 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Rear lift: | 3,591 lbs
1628 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Engine RPM: | 540@2400
|
| Dimensions & Tires |
| Wheelbase: | 80.7 inches
204 cm
|
| Weight: | 4725 to 5112 pounds
|
| Front tire: | 7.5-16
|
| Rear tire: | 16.9-28
|
| 5303 Serial Numbers |
| Location: | On the tractor frame, front-left, above the front axle.
|
| 2003: | U000001
|
| 2004: | U001018
|
| 2005: | U002908
|
| 2006: | Uxxxxxx
|
| 2007: | U006698
|
| 2008: | U008775
|
how to read serial numbers...
|
| External Links |
| Temperature sensor: potential cold-start advance sensor failure leading to a no-start condition |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 40
|
| Battery CCA: | 623
|
| Battery volts: | 12
|
|
