Navigation: Home > John Deere > 5500

John Deere 5500 Tractors

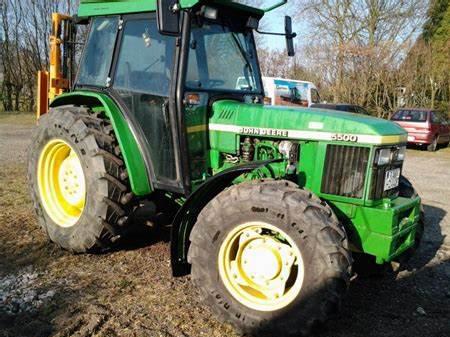

John Deere 5500
Power: 80 hp
Date of manufacture :
1996 - 2000
Production
Distributor:John Deere
Manufacturer:Carraro
Type:Utility tractor
Factory:Italy
John Deere 5500 Power
Engine (net):80 hp
59.7 kW
John Deere 5500 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:hydrostatic power
Brakes:wet disc
Trailer brakes:hydraulic*Optional
Cab:Cab standard.
Transmissions:12-speed partially synchronized
 24-speed partially synchronized
Hydraulics
Type:open center
Pump flow:11.4 gpm
43.1 lpm
Steering flow:7 gpm
26.5 lpm
Tractor hitch
Rear Type:II/I
Control:position and draft control
Rear lift:5291 lbs
2399 kg
Power Take-off (PTO)
Rear RPM:540/540E
 540/1000
Dimensions & Tires
Wheelbase:85.8 inches
217 cm
Weight:6400 lbs
2903 kg
Front tire:7.50-16
2WD Rear tire:16.9R30
Full dimensions and tires ...
5500 Serial Numbers
Location:Serial number plate on left side of frame, above the front axle.
Electrical
Ground:negative
Charging system:alternator
ROPS Charging amps:40
Cab Charging amps:60
Battery volts:12
Battery AH:100
