John Deere 5605 Tractors

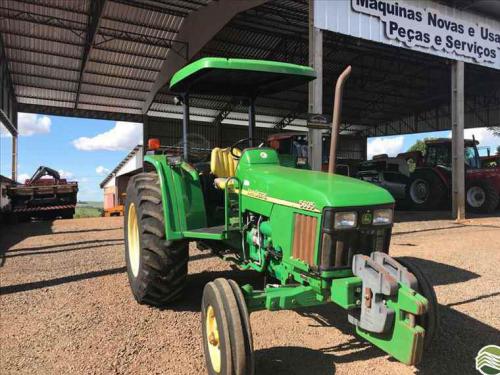

John Deere 5605
Power: 75 hp
Date of manufacture :
2000 - 2011
Production
Manufacturer:John Deere
Type:Utility tractor
Factory:Montenegro, Brazil
John Deere 5605 Power
Engine:75 hp
55.9 kW
PTO (claimed):65 hp
48.5 kW
John Deere 5605 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Steering:hydrostatic power
Brakes:hydraulic wet disc
Cab:Two-post ROPS.
Transmission:9-speed
Capacity
Fuel:27.7 gal
104.8 L
Hydraulic system:10.6 gal
40.1 L
Hydraulics
Type:open center gear pump
Capacity:10.6 gal
40.1 L
Pressure:2756 psi
190.0 bar
Valves:2
Pump flow:11.36 gpm
43.0 lpm
SCV flow:10.57 gpm
40.0 lpm
Oil type:
JD Hy-Gard

Steering flow:6.9 gpm
26.1 lpm
Tractor hitch
Rear Type:II
Control:position and depth control
Rear lift (at ends):6,805 lbs
3086 kg
Rear lift (at 24"/610mm):3,968 lbs
1799 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:mechanical dry disc
Rear RPM:540
Dimensions & Tires
Wheelbase:85.7 inches
217 cm
Weight:5952 to 6393 pounds
Front tire:7.50-16
Rear tire:18.4-30 (2WD)
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:52
Battery volts:12
Battery AH:100
