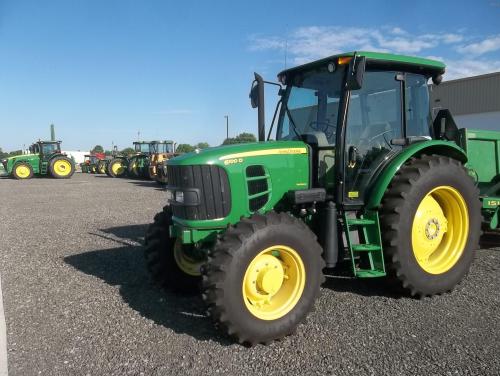

John Deere 6100D Tractors
 |
|
Power: 98 hp
Date of manufacture : 2008 - 2012 |
| Production |
| Manufacturer: | John Deere
|
| Type: | Utility tractor
|
| Factory: | Saltillo, Mexico
|
| Original price: | $45,299 (2011)
|
| John Deere 6100D Power |
| Engine (gross): | 98.9 hp
73.7 kW
|
| PTO (claimed): | 82 hp
61.1 kW
|
| Drawbar (tested): | 74.66 hp
55.7 kW
|
| PTO (tested): | 90.10 hp
67.2 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD (optional)
|
| Steering: | hydrostatic power
|
| Brakes: | differential mechanical wet disc
|
| Cab: | Folding 2-post ROPS or cab with heat and A/C
|
| Transmissions: | 9-speed partially synchronized with power shuttle
|
| | 9-speed partially synchronzied
|
| Capacity |
| Fuel: | 41.7 gal
157.8 L
|
| Hydraulic system: | 15.3 gal
57.9 L
|
| Front axle: | 6.9 qts
6.5 L
|
| Front hubs: | 2.1 qts
2.0 L (each)
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 15.3 gal
57.9 L
|
| Pressure: | 2830 psi
195.1 bar
|
| Valves: | 2 to 3
|
| Pump flow: | 17.6 gpm
66.6 lpm
|
| Steering flow: | 6.9 gpm
26.1 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | mechanical lower link
|
| Rear lift (at 24"/610mm): | 6,800 lbs
3084 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | dry disc
|
| Rear RPM: | 540/1000 (1.375)
|
| Engine RPM: | 540@2100
1000@2100
|
| Dimensions & Tires |
| Wheelbase: | 92.5 inches
234 cm
|
| Weight: | 7275 to 9170 pounds
|
| Front tire: | 10.00-16
|
| Rear tire: | 18.4-34 (2WD)
|
| 6100D Serial Numbers |
| Location: | Serial number plate on the right side of the tractor frame, above the front axle.
|
photo of 6100D serial number
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 70 (ROPS)
|
| | 90 (cab)
|
| Battery CCA: | 925
|
| Battery volts: | 12
|
| Battery AH: | 180
|
| Battery Group: | 31
|
|
