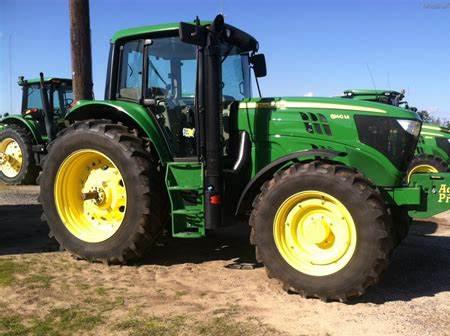

John Deere 6140M Tractors
 |
|
Power: 140 hp
Date of manufacture : 2013 - 2015 |
| Production |
| Manufacturer: | John Deere
|
| Type: | Row-Crop tractor
|
| Factory: | Mannheim, Baden-Württemberg, Germany
|
| Original price: | $88,344 (2014 PowrQuad 16 ROPS 2WD )
|
| Original price: | $111,429 (2014 AutoQuad Cab 4WD )
|
| John Deere 6140M Power |
| Engine (gross): | 140 hp
104.4 kW
|
| Engine (max): | 145 hp
108.1 kW
|
| PTO (claimed): | 114 hp
85.0 kW
|
| Drawbar (tested): | 108.69 hp
81.1 kW
|
| PTO (tested): | 2101 hp
1566.7 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | Electro-hydraulic rear
|
| | limit-slip front (4WD)
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Two-post foldable ROPS. Cab optional with air-conditioning. GreenStar (optional)
|
| | AutoTrac (optional)
|
| Transmissions: | 16-speed partial power shift
|
| | 24-speed partial power shift
|
| Photos |
| | John Deere 6140M photos... |
| Capacity |
| Fuel: | 91 gal
344.4 L
|
| Hydraulic system: | 13.7 gal
51.9 L
|
| Hydraulics |
| Type: | open center pressure compensated
|
| | closed center load sensing pressure and flow compensated (optional)
|
| Capacity: | 13.7 gal
51.9 L
|
| Pressure: | 2900 psi
200.0 bar
|
| Rear valves: | 1 to 3
|
| Mid valves: | 2 or 3 (optional)
|
| Pump flow: | 21.1 gpm
79.9 lpm
|
| | 30 gpm
113.6 lpm (optional)
|
| SCV flow: | 21.1 gpm
79.9 lpm
|
| Tractor hitch |
| Rear Type: | II/IIIN
|
| Control: | electrohydraulic load sensing
|
| Rear lift (at 24"/610mm): | 6627 lbs
3006 kg
|
| | 7430 lbs
3370 kg (optional)
|
| Drawbar: | Cat. II
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000 (1.375)
|
| Engine RPM: | 540@1932
1000@1932
|
| Dimensions & Tires |
| Wheelbase: | 108.9 inches
276 cm
|
| Weight: | 12200 lbs
5533 kg
|
| Front tire: | 10.00-16
|
| Rear tire: | 460/85R38 (2WD)
|
| 6140M Serial Numbers |
| Location: | Serial number plate on the right side of the tractor frame, above the front axle.
|
photo of 6140M serial number
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 90
|
| | 150 (optional)
|
| Charging volts: | 14
|
| Battery volts: | 12
|
|
