John Deere 6150R Tractors
 |
|
Power: 150 hp
Date of manufacture : 2013 - 2014 |
| Production |
| Manufacturer: | John Deere
|
| Type: | Row-Crop tractor
|
| Factory: | Waterloo, Iowa, USA
|
| Original price: | $125,570 (2014 16-speed Basic Cab 2WD )
|
| Original price: | $159,249 (2014 IVT Deluxe Cab 4WD )
|
| Variants |
| 6150R: | row-crop
|
| 6150RH: | high-crop
|
| John Deere 6150R Power |
| Engine (gross): | 150 hp
111.9 kW
|
| Engine (max): | 165 hp
123.0 kW
|
| PTO (claimed): | 120 hp
89.5 kW
|
| Drawbar (tested): | 116.90 hp
87.2 kW
|
| PTO (tested): | 144.68 hp
107.9 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| | optional TLS front-axle brakes
|
| Cab: | Cab standard with air-conditioning.
|
| Transmissions: | 16-speed four-speed power shift
|
| | 20-speed
|
| | infinitely variable transmission
|
| | 24-speed eight-speed power shift
|
| Photos |

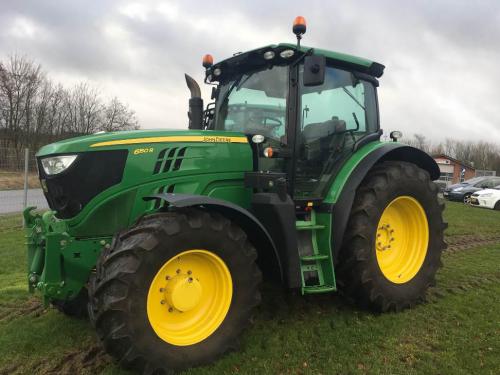

| | John Deere 6150R photos... |
| Hydraulics |
| Type: | closed center pressure and flow compensated
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 3 to 4
|
| Pump flow: | 30.1 gpm
113.9 lpm
|
| SCV flow: | 26.4 gpm
99.9 lpm
|
| Tractor hitch |
| Rear Type: | III/IIIN
|
| Rear lift: | 9193 lbs
4169 kg
|
| Drawbar: | Cat. 2
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000 (1.375)
|
| | 540/540E/1000 (1.375)
|
| Dimensions & Tires |
| 2WD Wheelbase: | 117.5 inches
298 cm
|
| 4WD Wheelbase: | 108.9 inches
276 cm
|
| Front tire: | 11.00-20
|
| Rear tire: | 480/80R46 (2WD)
|
| Full dimensions and tires ... |
| 6150R Serial Numbers |
| Location: | Serial number plate on the right side of tractor frame, above the front axle.
|
photo of 6150R serial number
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| | 150 (optional)
|
| | 200 (optional
|
| Charging volts: | 14
|
| Battery CCA: | 1200
|
| Battery volts: | 12
|
| Battery Group: | 4D
|
|
