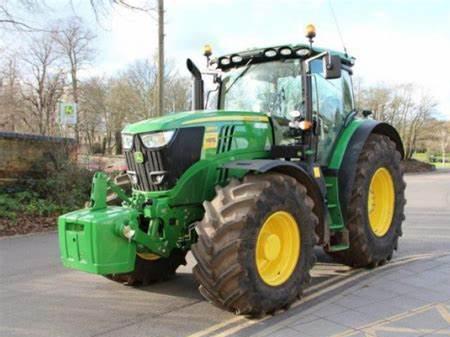

John Deere 6195R Tractors
 |
|
Power: 195 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | John Deere
|
| Type: | Row-Crop tractor
|
| Factory: | Waterloo, Iowa, USA
|
| Original price: | $173,991 (2017 )
|
| John Deere 6195R Power |
| Engine (gross): | 195 hp
145.4 kW
|
| Engine (max): | 235 hp
175.2 kW
|
| PTO (claimed): | 159 hp
118.6 kW
|
| Drawbar (tested): | 156.92 hp
117.0 kW
|
| PTO (tested): | 189.23 hp
141.1 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Steering: | power
|
| Cab: | Cab standard with air-conditioning.
|
| Transmissions: | 16-speed partial power shift
|
| | 20-speed partial power shift
|
| | 24-speed eight-speed power shift
|
| | infinitely variable transmission
|
| Hydraulics |
| Type: | closed center pressure flow compensated (PFC)
|
| Pressure: | 2900 psi
200.0 bar
|
| Rear valves: | 3 to 6
|
| Pump flow: | 41 gpm
155.2 lpm
|
| SCV flow: | 26.4 gpm
99.9 lpm
|
| Tractor hitch |
| Rear Type: | III/IIIN
|
| Rear lift (at 24"/610mm): | 9480 lbs
4300 kg
|
| | 10690 lbs
4848 kg *Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540/1000 (1.375)
|
| | 540/1000 (1.75)
|
| | 540/540E/1000 (1.375)
|
| | 540/540E/1000 (1.75)
|
| | 540E/1000/1000E (1.375)
|
| | 540E/1000/1000E (1.75)
|
| Dimensions & Tires |
| Wheelbase: | 110.2 inches
279 cm
|
| Weight: | 19610 lbs
8895 kg
|
| Front tire: | 420/90R30
|
| Rear tire: | 480/80R46
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 200
|
| | 240*Optional
|
| Charging volts: | 14
|
| Battery volts: | 12
|
|
