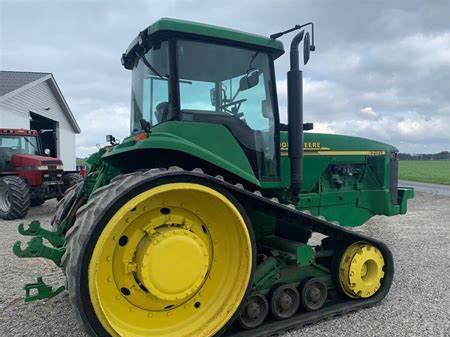

John Deere 8210T Tractors
 |
|
Power: 205 hp[P]
Date of manufacture : 2000 - 2001 |
| Production |
| Manufacturer: | John Deere
|
| Type: | Agricultural Crawler tractor
|
| Factory: | Waterloo, Iowa, USA
|
| Variants |
| 8210: | wheeled tractor
|
| 8210T: | crawler tractor
|
| John Deere 8210T Power |
| PTO (claimed): | 185 hp
138.0 kW
|
| Drawbar (tested): | 158.81 hp
118.4 kW
|
| PTO (tested): | 216.32 hp
161.3 kW
|
| Mechanical |
| Chassis: | crawler
|
| Steering: | hydrostatic
|
| Brakes: | hydraulic wet disc
|
| Cab: | CommandView cab standard with heat and A/C. Optional dexlue cab with rear windshield wiper, additional lights, mirror, and sun visor.
|
| Transmission: | 16-speed full powershift
|
| Capacity |
| Fuel: | 130 gal
492.1 L
|
| Hydraulic system: | 65 gal
246.0 L
|
| Hydraulics |
| Type: | pressure/flow compensated (PFC)
|
| Capacity: | 65 gal
246.0 L
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 3 to 5
|
| Pump flow: | 30 gpm
113.6 lpm
|
| Total flow: | 33.5 gpm
126.8 lpm
|
| | 42.5 gpm
160.9 lpm (optional)
|
| Tractor hitch |
| Rear Type: | III/IIIN
|
| Rear lift: | 15,650 lbs
7098 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tracks |
| Wheelbase: | 89 inches
226 cm
|
| Weight: | 23650 to 25390 pounds
|
| 16-inch tracks |
| Full dimensions and tracks ... |
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 140
|
| Batteries: | 2
|
| Battery CCA: | 1850
|
| Battery volts: | 12
|
|
