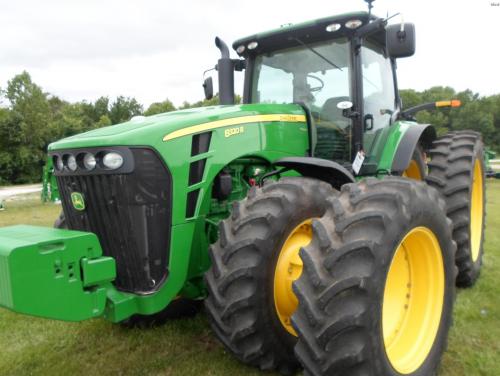

John Deere 8320R Tractors

John Deere 8320R
Power: 320 hp
Date of manufacture :
2014 - 2019
Production
Manufacturer:John Deere
Type:Row-Crop tractor
Factory:Waterloo, Iowa, USA
Variants
8320R:wheeled tractor
8320RT:crawler
John Deere 8320R Power
Engine (gross):320 hp
238.6 kW
Engine (max):352 hp
262.5 kW
PTO (claimed):269 hp
200.6 kW
 150 hp
111.9 kW (front)
Drawbar (tested):253.13 hp
188.8 kW
PTO (tested):318.08 hp
237.2 kW
John Deere 8320R Engine
Mechanical
Chassis:4x4 MFWD 4WD
Final drives:inboard planetary
Differential lock:hydraulic rear standard
 hydraulic front with 1500 and ILS axles
Steering:hydrostatic power
 Active Command steering optional
Brakes:hydraulic wet disc
Trailer brakes:hydraulic (optional)
 dual line air (optional)
Cab:CommandView III cab standard with air-conditioning. AutoTrac ready
 JDLink
 ServiceADVISOR Remote
Transmissions:16-speed full power shift
 infinitely variable transmission (IVT)
Photos
John Deere 8320R photos...
Capacity
Fuel:170.4 gal
645.0 L
 181.2 gal
685.8 L (G49 chassis)
Exhaust fluid (DEF):6.8 gal
25.7 L
Hydraulic system:10.6 gal
40.1 L
 23.8 gal
90.1 L (optional)
Hydraulics
Type:closed-center load sensing pressure flow compensated
Capacity:10.6 gal
40.1 L
 23.8 gal
90.1 L (optional)
Rear valves:4 to 6
Front valves:0 to 2
Pump flow:60 gpm
227.1 lpm
 85 gpm
321.7 lpm (optional)
SCV flow:35 gpm
132.5 lpm
 42 gpm
159.0 lpm (optional)
Tractor hitch
Rear Type:IVN/III
Rear lift:15000 lbs
6804 kg
 20000 lbs
9072 kg (optional)
Rear Arms:hydraulic center link optional
Front Hitch:optional
Front lift (at ends):11450 lbs
5193 kg
Drawbar:Cat 4
 Cat 4 Heavy-Duty optional
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000 (1.75)
 1000/1000E (1.75 optional)
 540/1000 (1.375 optional)
Front PTO:optional independent
Front RPM:1000 (1.75)
 1000 (1.375)
Dimensions & Tires
Wheelbase:120.1 inches
305 cm
Weight:32691 lbs
14828 kg
Front tire:380/80R38
Rear tire:480/80R50
Full dimensions and tires ...
8320R Serial Numbers
Location:Serial number plate on the front-right of the tractor frame, above the front axle.
photo of 8320R serial number

Electrical
Ground:negative
Charging system:alternator
Charging amps:240
Batteries:2
Battery CCA:925 (each)
Battery volts:12
