John Deere lawn tractors 1570 Tractors

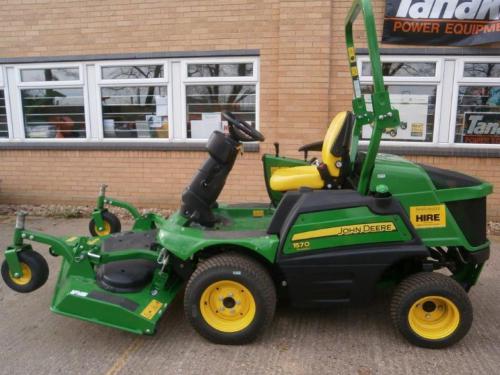

John Deere lawn tractors 1570
Power: 37 hp
Date of manufacture :
0000 - 0000
Production
ManufacturerJohn Deere
TypeFront-mount mower
FactoryFuquay-Varina, North Carolina, USA
Original price$28,649 (2021 )
John Deere 1570 Engine
John Deere 1570 Transmission
Mechanical
Chassis4x2 2WD
 4x4 MRWD 4WD
Differential lockmechanical front
Steeringpower
Brakeswet disc
CabTwo-post folding ROPS.
Hydraulics
Typeopen center
Pump flow5.1 gpm
19.3 lpm
Power Take-off (PTO)
Front PTOindependent
Clutchwet disc
Front RPM2000
Dimensions & Tires
Wheelbase48.2 inches
122 cm
Weight1850 to 1960 pounds
Front tire23x10.5-12
Rear tire18x8.5-8
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps75
Battery CCA480
Battery volts12
