Navigation: Home > John Deere lawn tractors > E130

John Deere lawn tractors E130 Tractors

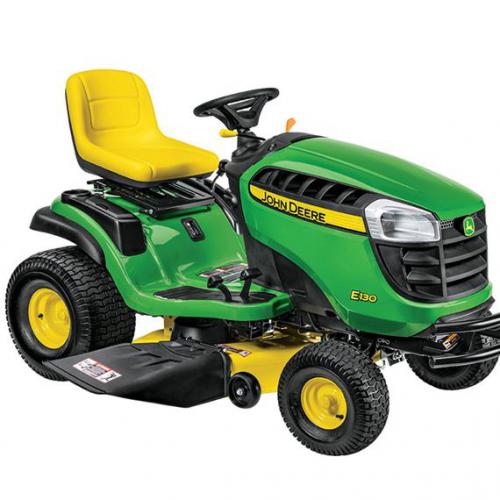

John Deere lawn tractors E130
Power: 22 hp
Date of manufacture :
2018 - 2020
Production
ManufacturerJohn Deere
TypeLawn tractor
FactoryGreeneville, Tennessee, USA
Original price$1,999 (2018 )
John Deere E130 Engine
John Deere E130 Transmission
Mechanical
Chassis4x2 2WD
Steeringmanual
Brakeswet disc
CabOpen operator station.
Power Take-off (PTO)
Mid PTOindependent
Clutchmanual
Dimensions & Tires
Wheelbase48.9 inches
124 cm
Weight438 lbs
198 kg
Front tire15x6-6
Rear tire20x10-8
Full dimensions and tires ...
E130 Serial Numbers
E130 Serial Location
Serial number on the left side of the John Deere E130, under the fender by the rear wheel.
Electrical
Groundnegative
Charging amps9
Battery CCA300
Battery volts12
