John Deere lawn tractors X475 Tractors
|
|
Power: 23 hp
Date of manufacture : 2002 - 2005 |
Production |
Manufacturer | John Deere
|
John Deere X475 Transmission |
Mechanical |
Two-wheel drive |
Differential lock | mechanical rear
| Steering | hydrostatic power
| | four-wheel steering on AWS
| Integral wet disc brakes |
Open operator station. Optional hard and soft-sided cabs. Optional vinyl weather enclosure. |

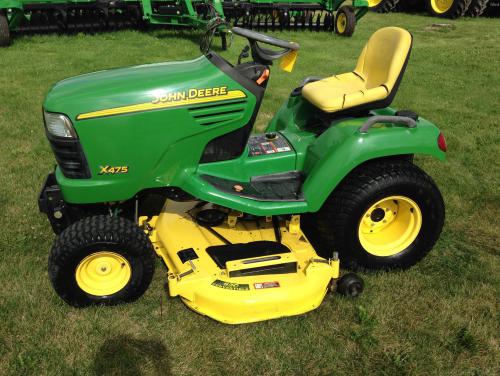

Photos |
| John Deere X475 photos... |
Tractor hitch |
Rear Type | 0 OptOptional
| | 1-limited OptOptional
| Rear lift | 450 lbs 204 kg
|
Power Take-off (PTO) |
Rear PTO | independent OptOptional
| Rear RPM | 540
| Mid PTO | independent
| Clutch | electric
|
Dimensions & Tires |
Wheelbase | 54.5 inches 138 cm
| Weight | 840 to 900 pounds
| Front tire | 18x8.5-8
| Rear tire | 26x12-12
| Full dimensions and tires ... |
X475 Serial Numbers |
2002 | 010001
| 2003 | 020001
| 2004 | 030001
| FAQ: How to read a serial number table.
|
X475 Serial Location |
| Serial number decal on the middle-right of the main tractor frame. |
Electrical |
Ground | negative
| Charging system | alternator
| Charging amps | 20
| Battery CCA | 340
| Battery volts | 12
| |
