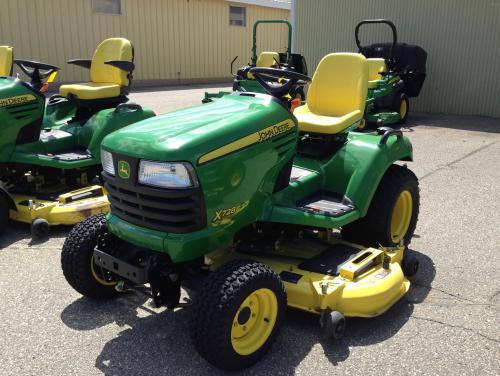

John Deere lawn tractors X728 Tractors
 |
|
Power: 27 hp
Date of manufacture : 2006 - 2012 |
| Production |
| Manufacturer | John Deere
| | Type | Garden tractor
| | Factory | Horicon, Wisconsin, USA
| | Original price | $10,369 (2011 )
|
| John Deere X728 Transmission |
| Mechanical |
| Chassis | 4x4 MFWD 4WD (2006-2008)
| | | 4x4 HFWD 4WD (2009-)
| | Steering | hydrostatic power
| | Brakes | wet disc
| | Cab | Open operator station featuring 18-inch seat with 7-inches of adjustment. Cupholder, toolbox, tilt steering, and 12-volt outlet standard. Optional soft-side or hard cab. Special Edition seat has armrests plus tilt and lumbar adjustment.
|
| Photos |
| | John Deere X728 photos... |
| Hydraulics |
| Pressure | 924 psi
63.7 bar
| | Valves | 2
| | Total flow | 6.0 gpm
22.7 lpm
|
| Tractor hitch |
| Rear Type | 0 (optional)
| | | 1-Limited (optional)
|
| Power Take-off (PTO) |
| Rear PTO | independent (optional)
| | Rear RPM | 540
| | Mid PTO | independent
| | Mid RPM | 2000
| | Front PTO | optional
| | Front RPM | 2000
|
| Dimensions & Tires |
| Wheelbase | 55.7 inches
141 cm
| | Weight | 925 to 1044 pounds
| | Front tire | 18x8.5-10
| | Rear tire | 26x12-12
| | Full dimensions and tires ... |
| X728 Serial Numbers |
| 2006 | 010001
| | 2007 | 020001
| | 2008 | 030001
| | 2009 | 040001
| | 2010 | 050001
| | 2011 | 060001
|
How to read a serial number table...
|
| X728 Serial Location |
| | Serial number tag on the center-right of X728 tractor frame, just behind the hydraulic couplers. |
| Electrical |
| Ground | negative
| | Charging system | alternator
| | Charging amps | 20
| | | 40 (optional)
| | Battery CCA | 340
| | Battery volts | 12
| |
