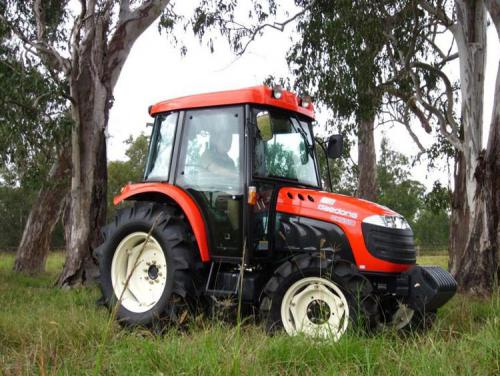

Kioti DK551 Tractors

Kioti DK551
Power: 54 hp
Date of manufacture : 2010 - 2015
Production
Manufacturer:Kioti (a part of Daedong)
Type:Compact Utility tractor
Factory:South Korea
Kioti DK551 Power
Engine (gross):54 hp
40.3 kW
Kioti DK551 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS. Cab available with air-conditioning.
Transmission:12-speed synchro shuttle
Hydraulics
Type:open center
Valves:2
Pump flow:9.9 gpm
37.5 lpm
Total flow:16.5 gpm
62.5 lpm
Steering flow:6.6 gpm
25.0 lpm
Tractor hitch
Rear Type:II/I
Control:position and draft control
Rear lift (at ends):2654 lbs
1203 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/750/1000
Dimensions & Tires
Wheelbase:75.6 inches
192 cm
Weight:4612 to 5203 pounds
Front tire:9.5-20
Rear tire:14.9-28
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
