Navigation: Home > Kioti > PX9510

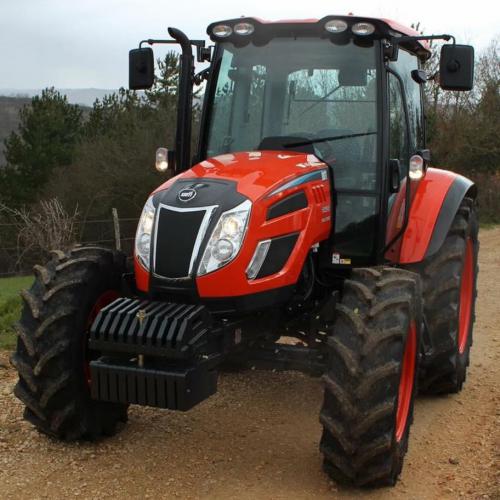

Kioti PX9510 Tractors

Kioti PX9510
Power: 90 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Kioti (a part of Daedong)
Type:Utility tractor
Factory:South Korea
Kioti PX9510 Power
Engine (gross):90 hp
67.1 kW
Kioti PX9510 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:power
Brakes:wet disc
Cab:Two-post ROPS. Cab available with air-conditioning.
Transmissions:16-speed synchro shuttle
 32-speed power shuttle
Hydraulics
Type:open center
Valves:4
Pump flow:12.8 gpm
48.4 lpm
Total flow:20.9 gpm
79.1 lpm
Steering flow:8.1 gpm
30.7 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift (at ends):5291 lbs
2399 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
Dimensions & Tires
Wheelbase:90.7 inches
230 cm
Weight:7716 to 8003 pounds
Front tire:12.4-24
Rear tire:18.4-34
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
