Kubota B2710 Tractors

Kubota B2710
Power: 27 hp
Date of manufacture :
2000 - 2005
Production
Manufacturer:Kubota
Type:Compact Utility tractor
Kubota B2710 Power
Engine (gross):27 hp
20.1 kW
PTO (claimed):20 hp
14.9 kW
Kubota B2710 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Final drives:spur gear
Differential lock:mechanical rear
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS.
Transmission:hydrostatic
Photos

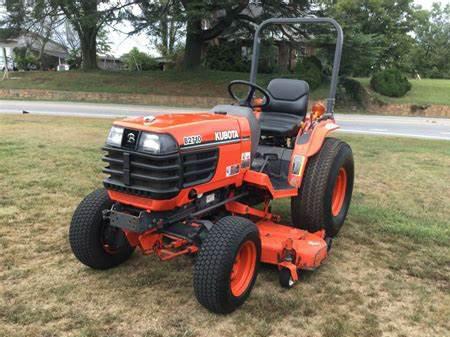

Kubota B2710 photos...
Hydraulics
Type:open center
Valves:2
Pump flow:6.4 gpm
24.2 lpm
Total flow:9.5 gpm
36.0 lpm
Steering flow:3.1 gpm
11.7 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift (at ends):1655 lbs
750 kg
Rear lift (at 24"/610mm):1300 lbs
589 kg
Power Take-off (PTO)
Rear PTO:live
Rear RPM:540 (1.375)
Engine RPM:540@2600
Mid PTO:live
Mid RPM:2500 (Kubota 10-spline)
Engine RPM:2500@2578
Dimensions & Tires
Wheelbase:65.6 inches
166 cm
Weight:1741 lbs
789 kg
Front tire:7-12
Rear tire:12.4-16
Electrical
Ground:negative
Battery CCA:443
Battery volts:12
