| Production |
| Manufacturer: | Kubota
|
| Type: | Compact Utility tractor
|
| Original price: | $9,336 (2011 )
|
| Original price: | $9,606 (2013 )
|
| Kubota BX1860 Power |
| Engine (gross): | 18 hp
13.4 kW
|
| PTO (claimed): | 13.7 hp
10.2 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | rear standard
|
| Steering: | hydrostatic power
|
| Brakes: | wet disc
|
| Cab: | Two-post fixed ROPS. Canopy optional.
|
| Transmission: | hydrostatic
|
| Photos |

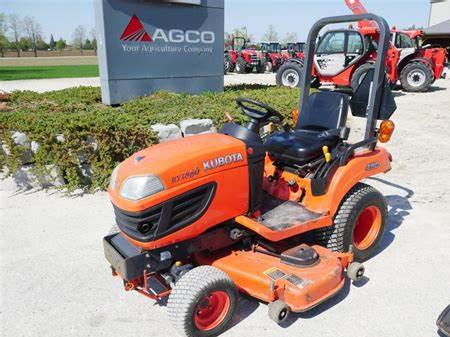

| | Kubota BX1860 photos... |
| Capacity |
| Fuel: | 6.6 gal
25.0 L
|
| Hydraulic system: | 3.1 gal
11.7 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 3.1 gal
11.7 L
|
| Total flow: | 6.3 gpm
23.8 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift (at ends): | 992 lbs
449 kg
|
| Rear lift (at 24"/610mm): | 670 lbs
303 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Engine RPM: | 540@3200
|
| Mid PTO: | independent
|
| Mid RPM: | 2500
|
| Engine RPM: | 2500@3200
|
| Dimensions & Tires |
| Wheelbase: | 52.9 inches
134 cm
|
| Weight: | 1,255 lbs
569 kg
|
| Front tire: | 16x7.5-8
|
| Rear tire: | 24x12-12
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 40
|
| Battery volts: | 12
|
|
