Kubota L1-275 Tractors

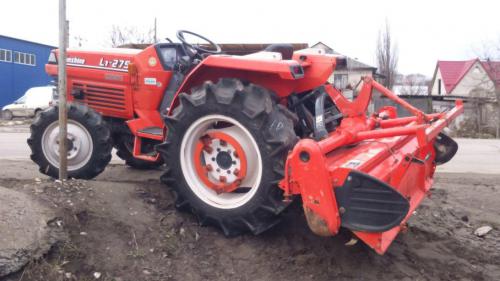

Kubota L1-275
Power: 26 hp
Date of manufacture :
1988 - 1991
Production
Manufacturer:Kubota
Type:Compact Utility tractor
Kubota L1-275 Power
Engine:26.6 hp
19.8 kW
PTO (claimed):25.5 hp
19.0 kW
Kubota L1-275 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Cab:Open operator station.
Transmission:16-speed
Hydraulics
Pump flow:6.2 gpm
23.5 lpm
Tractor hitch
Rear Type:I
Rear lift:1488 lbs
674 kg
Power Take-off (PTO)
Rear RPM:600/836/1038/1350 (1.375)
Dimensions & Tires
Wheelbase:62.6 inches
159 cm
Weight:2304 to 2458 pounds
Front tire:5.00-15
2WD Rear tire:12.4-24
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
