Kubota L2900 Tractors

Kubota L2900
Power: 32 hp
Date of manufacture :
1994 - 1999
Production
Manufacturer:Kubota
Type:Compact Utility tractor
Kubota L2900 Power
Engine (gross):32.1 hp
23.9 kW
Engine (net):29.7 hp
22.1 kW
PTO (claimed):25 hp
18.6 kW
Plows:2*12-inch
 1*16-inch
Kubota L2900 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post ROPS.
Transmissions:8-speed synchronized shuttle
 8-speed power shuttle

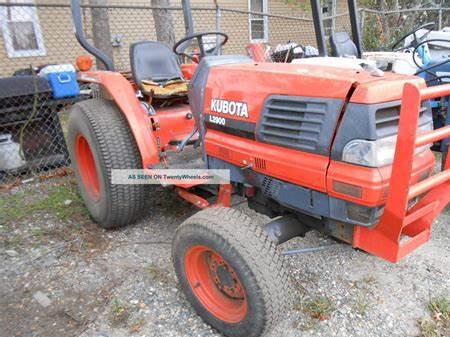

Photos
Kubota L2900 photos...
Capacity
Fuel:9.2 gal
34.8 L
Hydraulic system:10.3 gal
39.0 L
Hydraulics
Type:open center
Capacity:10.3 gal
39.0 L
Pressure:2490 psi
171.7 bar
Pump flow:7.0 gpm
26.5 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift (at ends):2,870 lbs
1301 kg
Rear lift (at 24"/610mm):2,200 lbs
997 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Engine RPM:540@2670
Mid PTO:independent
Mid RPM:2000
Engine RPM:2000@2623
Dimensions & Tires
2WD Wheelbase:65.9 inches
167 cm
4WD Wheelbase:65.7 inches
166 cm
Weight:2560 to 2710 pounds
Front tire:5.00-15
Rear tire:11.2-24 (2WD)
L2900 Serial Numbers
1994:5002
1995:54654
1996:56282
1997:58445

how to read serial numbers...

Electrical
Ground:negative
Battery CCA:490
Battery volts:12
