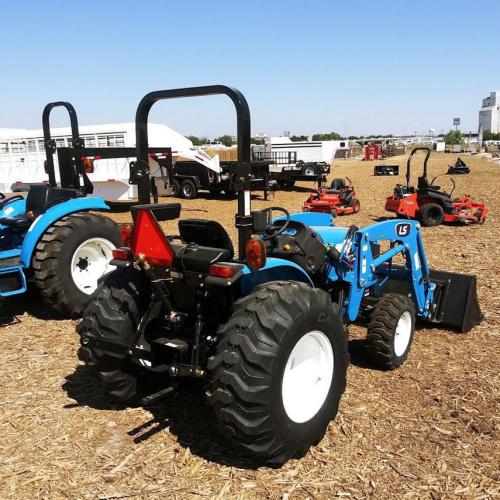

LS MT225E Tractors

LS MT225E
Power: 24 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:LS
Type:Compact Utility tractor
Variants
MT225HE:hydrostatic
LS MT225E Power
Engine (gross):24.6 hp
18.3 kW
Shuttle PTO (claimed):19.2 hp
14.3 kW
Hydro PTO (claimed):17.2 hp
12.8 kW
LS MT225E Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS.
Transmissions:12-speed synchro shuttle
 hydrostatic
Hydraulics
Valves:0 to 2
Pump flow:7.9 gpm
29.9 lpm
Total flow:12.5 gpm
47.3 lpm
Steering flow:4.6 gpm
17.4 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift (at ends):1808 lbs
820 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Dimensions & Tires
Wheelbase:66 inches
167 cm
Weight:2434 to 2469 pounds
Front tire:7-14
Rear tire:11.2-24
Electrical
Ground:negative
Charging system:alternator
Charging amps:50
Charging volts:12
Battery volts:12
