LS P7040 Tractors

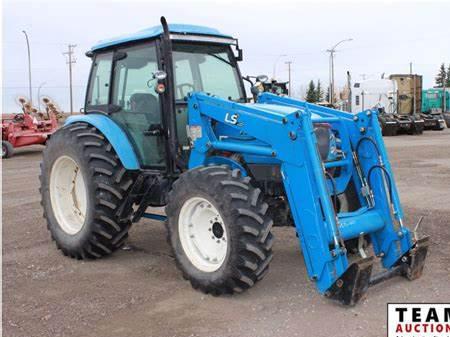

LS P7040
Power: 97 hp
Date of manufacture :
2009 - 2019
Production
Manufacturer:LS
Type:Utility tractor
Variants
P7040F:ROPS
P7040CPS:cab with power shuttle
LS P7040 Power
Engine (gross):97 hp
72.3 kW
PTO (claimed):85 hp
63.4 kW
LS P7040 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS. Cab available with air-conditioning.
Transmissions:20-speed synchro shuttle
 40-speed power shuttle
Hydraulics
Rear valves:3
Pump flow:15.9 gpm
60.2 lpm
Total flow:22.9 gpm
86.7 lpm
Steering flow:7 gpm
26.5 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift:6173 lbs
2800 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/750/1000
Dimensions & Tires
Wheelbase:90 inches
228 cm
Weight:6660 to 7143 pounds
Front tire:12.4-24
Rear tire:18.4-30 (ROPS)
Electrical
Ground:negative
Charging system:alternator
Charging amps:90
Battery volts:12
