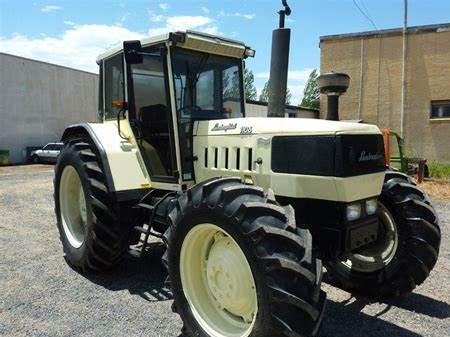

Lamborghini 1106 Tractors
 |
|
Power: 110 hp
Date of manufacture : 1985 - 1996 |
| Production |
| Manufacturer: | Lamborghini (a part of SAME)
|
| Type: | Row-Crop tractor
|
| Lamborghini 1106 Power |
| Engine: | 110 hp
82.0 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | planetary
|
| Differential lock: | mechanical front and rear
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Trailer brakes: | hydraulic*Optional
|
| Cab: | Cab available with air-conditioning.
|
| Transmissions: | 9-speed
|
| | 24-speed
|
| | 20-speed creeper
|
| Hydraulics |
| Pump flow: | 14.9 gpm
56.4 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position and draft control
|
| Rear lift: | 10141 lbs
4599 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic wet disc
|
| Rear RPM: | 540/1000 (1.375)
|
| Dimensions & Tires |
| Wheelbase: | 102.36 inches
259 cm
|
| Weight: | 8686 to 10317 pounds
|
| Front tire: | 10.00-16
|
| 2WD Rear tire: | 18.4/15-34
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
| ROPS Charging amps: | 45
|
| Cab Charging amps: | 55
|
| Battery volts: | 12
|
| Battery AH: | 143
|
|
