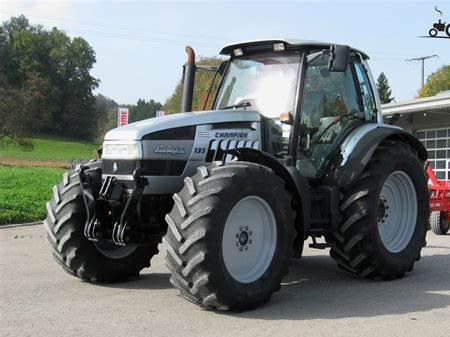

Lamborghini Champion 135 Tractors
 |
|
Power: 135 hp
Date of manufacture : 1998 - 2004 |
| Production |
| Manufacturer: | Lamborghini
|
| Type: | Row-Crop tractor
|
| Lamborghini Champion 135 Power |
| Engine: | 135 hp
100.7 kW
|
| Lamborghini Champion 135 Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | electro-hydraulic front and rear
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Trailer brakes: | hydraulic*Optional
|
| Cab: | Cab standard with air-conditioning.
|
| Transmissions: | 18-speed 9-speed power shift
|
| | 27-speed creeper
|
| Hydraulics |
| Type: | open center
|
| | load-sensing*Optional
|
| Valves: | 8*Optional
|
| Pump flow: | 19.3 gpm
73.1 lpm (open)
|
| | 27.2 gpm
103.0 lpm (load-sensing)
|
| Tractor hitch |
| Rear lift: | 15432 lbs
6999 kg
|
| | 18960 lbs
8600 kg *With optional lift cylinders.
|
| Front lift: | 8818 lbs
3999 kg *Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic wet disc
|
| Rear RPM: | 540/1000
|
| | 540E/1000
|
| Front PTO: | independent*Optional
|
| Clutch: | electro-hydraulic
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 108.3 inches
275 cm
|
| Weight: | 13448 lbs
6100 kg
|
| Front tire: | 420/70R30
|
| Rear tire: | 520/70R38
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
|
