Landini 10000S Tractors

Landini 10000S
Power: 103 hp
Date of manufacture :
1987 - 1993
Production
Manufacturer:Landini
Type:Row-Crop tractor
Variants
Massey Ferguson 1014
Landini 10000S Power
Engine:103 hp
76.8 kW
PTO (claimed):92 hp
68.6 kW
Landini 10000S Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:planetary
Differential lock:mechanical rear
Steering:power
Brakes:hydraulic wet disc
Cab:Cab standard with air-conditioning.
Transmission:12-speed

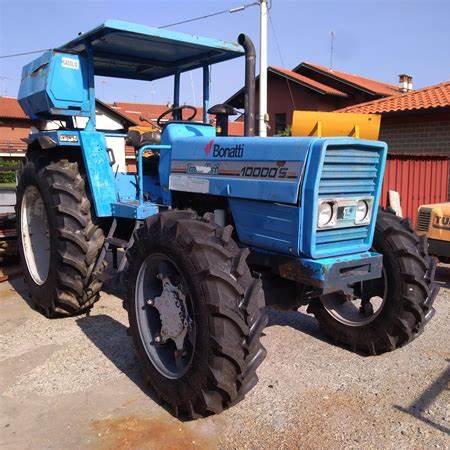

Photos
Landini 10000S photos...
Capacity
Fuel:41.6 gal
157.5 L
Hydraulic system:22.5 gal
85.2 L
Hydraulics
Type:open center
Capacity:22.5 gal
85.2 L
Total flow:14.0 gpm
53.0 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift:9371 lbs
4250 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
Dimensions & Tires
2WD Wheelbase:104.7 inches
265 cm
4WD Wheelbase:102.8 inches
261 cm
Weight:9520 to 10251 pounds
Front tire:11.00-16
2WD Rear tire:18.4-38
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:45
