Leyland 255 Tractors

Leyland 255
Power: 60 hp
Date of manufacture :
1972 - 1976
Production
Manufacturer:Leyland
Type:Utility tractor
Leyland 255 Power
Engine (gross):60 hp
44.7 kW
Engine (net):56 hp
41.8 kW
PTO (claimed):50 hp
37.3 kW
Drawbar (tested):40.50 hp
30.2 kW
PTO (tested):47.91 hp
35.7 kW
Leyland 255 Engine
Mechanical
Chassis:4x2 2WD
Steering:power assist
Brakes:mechanical dry disc
Cab:Open operator station. Cab available.
Transmission:10-speed gear

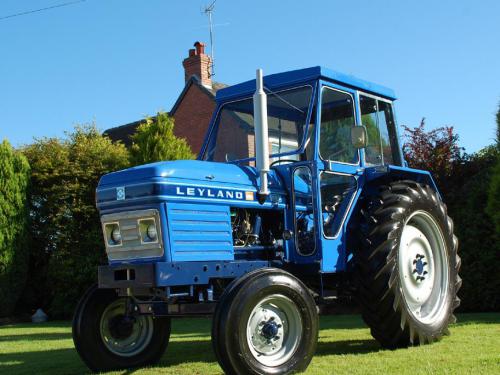

Photos
Leyland 255 photos...
Capacity
Fuel:18 gal
68.1 L
Hydraulic system:14.8 gal
56.0 L
Hydraulics
Type:open center
Capacity:14.8 gal
56.0 L
Pressure:2610 psi
180.0 bar
Pump flow:7.9 gpm
29.9 lpm
Tractor hitch
Rear Type:II/I
Rear lift:4012 lbs
1819 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Engine RPM:540@1813
Dimensions & Tires
Wheelbase:79.9 inches
202 cm
Weight:5379 to 6300 pounds
Front tire:7.50-16
Rear tire:16.9-28
Full dimensions and tires ...
