Leyland 802 Tractors

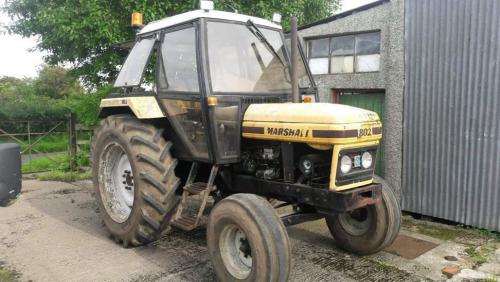

Leyland 802
Power: 82 hp
Date of manufacture :
1981 - 1982
Production
Manufacturer:Leyland
Type:Utility tractor
Original price:$20,500 (1984)
Variants
802:2WD
Leyland 802 Power
Engine:82 hp
61.1 kW
PTO (claimed):74 hp
55.2 kW
Leyland 802 Engine
Mechanical
Chassis:4x2 2WD
Final drives:spur gear
Differential lock:mechanical rear
Steering:power
Brakes:hydraulic wet disc
Cab:Cab standard with heat.
Transmission:9-speed synchromesh
Hydraulics
Pressure:2600 psi
179.3 bar
Pump flow:14.5 gpm
54.9 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift:5200 lbs
2358 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Dimensions & Tires
Weight:6550 lbs
2971 kg
Front tire:7.50x16
Rear tire:14.00x34
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:36
Battery volts:12
