Long 260 Tractors

Long 260
Power: 26 hp
Date of manufacture :
1980 - 1990
Production
Distributor:Long
Manufacturer:UTB/Universal
Type:Utility tractor
Variants
Universal 260:similar model
Long 260 Power
PTO (claimed):24 hp
17.9 kW
Long 260 Engine
Mechanical
Chassis:4x2 2WD
Steering:manual
 hydrostatic power*Optional
Brakes:mechanical band
Cab:Open operator station. Two-post ROPS optional. FOPS canopy optional.
Transmission:6-speed sliding gear/constant mesh

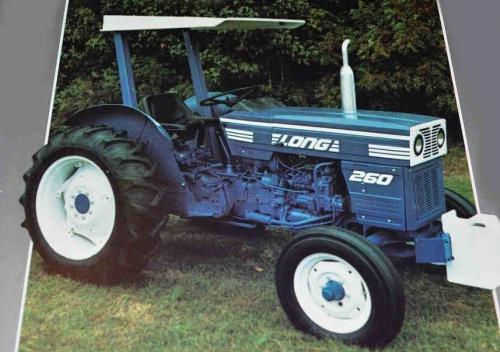

Photos
Long 260 photos...
Capacity
Fuel:14.3 gal
54.1 L
Hydraulic system:4.25 gal
16.1 L
 10 gal
37.9 L *Optional
Rear diff.:1.5 qts
1.4 L
Hydraulics
Type:open center
Capacity:4.25 gal
16.1 L
 10 gal
37.9 L *Optional
Valves:0 to 2
Total flow:5.75 gpm
21.8 lpm
Tractor hitch
Rear lift:II/I lbs
0 kg
Rear lift (at ends):2645 lbs
1199 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/ground
Engine RPM:540@1970
Dimensions & Tires
Wheelbase:70.8 inches
179 cm
Weight:3270 lbs
1483 kg
Front tire:5.00-1511.2-28
Full dimensions and tires ...
260 Serial Numbers
Location:A tractor identification plate is located on the right-hand side of the transmission housing.
Electrical
Ground:negative
Charging system:alternator
Charging amps:30
Batteries:1
 2
Battery volts:12
 6
Battery Group:BCI 30H (12v)
 BCI 3EH (6v)
