Long 560 Tractors

Long 560
Power: 60 hp
Date of manufacture :
1975 - 1985
Production
Distributor:Long
Manufacturer:UTB/Universal
Type:Utility tractor
Factory:Brasov, Romania
Variants
560DT:4WD
Long 560 Power
Engine:60 hp
44.7 kW
Drawbar (tested):46.73 hp
34.8 kW
PTO (tested):53.61 hp
40.0 kW
Long 560 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:pedal with auto-disengagement
Steering:manual
 power optional
Brakes:independent contracting band
Cab:Open operator station.
Transmission:8-speed partially synchronized

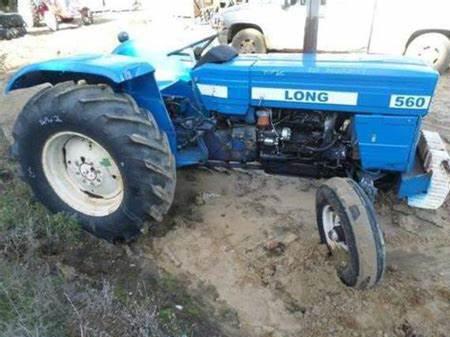

Photos
Long 560 photos...
Capacity
Fuel:14.25 gal
53.9 L
Hydraulic system:4.5 gal
17.0 L
Hydraulics
Capacity:4.5 gal
17.0 L
Pressure:2133 psi
147.1 bar
Total flow:5.75 gpm
21.8 lpm
Tractor hitch
Rear Type:I
Rear lift:2,660 lbs
1206 kg
Power Take-off (PTO)
Rear RPM:540
Dimensions & Tires
Wheelbase:81.25 inches
206 cm
Weight:4,570 lbs
2072 kg
Front tire:7.50-16
Rear tire:14.9-28
Full dimensions and tires ...
