| Production |
| Distributor: | Mahindra
|
| Manufacturer: | TYM
|
| Type: | Compact Utility tractor
|
| Original price: | $27,068 (2016 shuttle ROPS )
|
| Original price: | $28,553 (2016 hydrostatic ROPS )
|
| Original price: | $34,493 (2016 shuttle cab )
|
| Original price: | $35,978 (2016 hydrostatic cab )
|
| Mahindra 2555 Power |
| Engine: | 55 hp
41.0 kW
|
| Shuttle PTO (claimed): | 44.5 hp
33.2 kW
|
| Hydro PTO (claimed): | 42.4 hp
31.6 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post foldable ROPS. Cab optional with air-conditioning.
|
| Transmissions: | 12-speed shuttle
|
| | hydrostatic
|
| Photos |

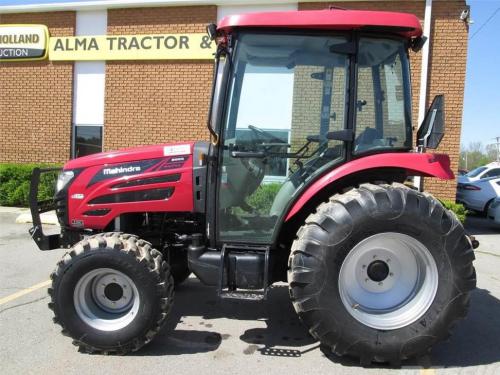

| | Mahindra 2555 photos... |
| Hydraulics |
| Type: | open center
|
| Rear valves: | 1 or 2
|
| Shuttle Pump flow: | 9.5 gpm
36.0 lpm
|
| Hydro Pump flow: | 9.7 gpm
36.7 lpm
|
| Steering flow: | 5 gpm
18.9 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position control
|
| Rear lift: | 3314 lbs
1503 kg
|
| Rear Arms: | telescopic stabilizers
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540 (1.375)
|
| Engine RPM: | 540@2300
|
| Dimensions & Tires |
| Weight: | 4056 to 4299 pounds
|
| Front tire: | 9.5x16
|
| Rear tire: | 14.9x24
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 90
|
| Charging volts: | 12
|
| Battery volts: | 12
|
| Battery AH: | 96
|
|
