| Production |
| Manufacturer: | Mahindra
|
| Type: | Compact Utility tractor
|
| Factory: | Maharashtra, India
|
| Original price: | $23,720 (2013 hydro )
|
| Original price: | $22,970 (2013 power shuttle )
|
| Original price: | $22,220 (2013 sync shuttle )
|
| Mahindra 4035 Power |
| Engine: | 40 hp
29.8 kW
|
| PTO (claimed): | 33 hp
24.6 kW (gear)
|
| | 31.5 hp
23.5 kW (hydro)
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | wet disc
|
| Cab: | Two-post foldable ROPS.
|
| Transmissions: | 12-speed synchro shuttle
|
| | 12-speed power shuttle
|
| | hydrostatic
|
| Photos |

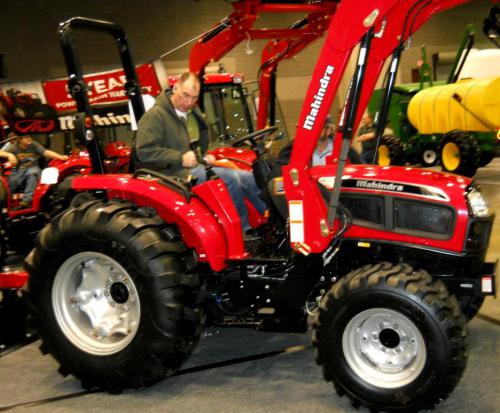

| | Mahindra 4035 photos... |
| Hydraulics |
| Type: | open center
|
| Rear valves: | 0 to 2
|
| Total flow: | 11 gpm
41.6 lpm
|
| Steering flow: | 5 gpm
18.9 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift: | 3,090 lbs
1401 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Engine RPM: | 540@2404
|
| Dimensions & Tires |
| Weight: | 4367 to 4817 pounds
|
| Front tire: | 9.5-16
|
| Rear tire: | 14.9-24
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 45
|
| Battery volts: | 12
|
| Battery AH: | 96
|
|
