| Production |
| Manufacturer: | Mahindra
|
| Type: | Compact Utility tractor
|
| Original price: | $21,560 (2012 ROPS )
|
| Original price: | $29,560 (2012 Cab )
|
| Mahindra 5010 Power |
| Engine: | 49 hp
36.5 kW
|
| Gear PTO (claimed): | 41.5 hp
30.9 kW
|
| Hydro PTO (claimed): | 38 hp
28.3 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post foldable ROPS. Cab optional.
|
| Transmissions: | 9-speed constant mesh
|
| | hydrostatic
|
| Photos |

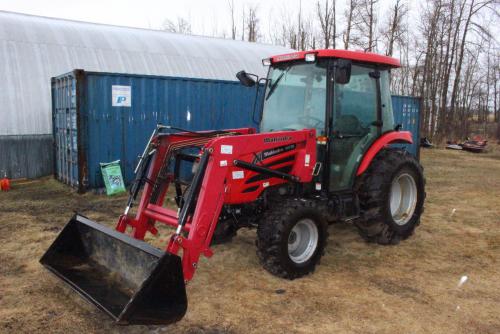

| | Mahindra 5010 photos... |
| Hydraulics |
| Type: | open center
|
| Valves: | 1
|
| Pump flow: | 9.5 gpm
36.0 lpm
|
| Steering flow: | 5 gpm
18.9 lpm
|
| Tractor hitch |
| Rear Type: | 1
|
| Control: | position control
|
| Rear lift: | 3,314 lbs
1503 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540
|
| Engine RPM: | 540@2600
|
| Dimensions & Tires |
| Weight: | 3836 to 4078 pounds
|
| Front tire: | 9.5x16
|
| Rear tire: | 14.9x24
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 50
|
| Battery volts: | 12
|
| Battery AH: | 80
|
|
