| Production |
| Manufacturer: | Mahindra
|
| Type: | Utility tractor
|
| Original price: | $24,975 (2013 4WD )
|
| Original price: | $18,440 (2013 2WD )
|
| Mahindra 5530 Power |
| Engine: | 55 hp
41.0 kW
|
| PTO (claimed): | 45 hp
33.6 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD (optional)
|
| Steering: | hydrostatic power
|
| Brakes: | wet disc
|
| Cab: | Two-post foldable ROPS.
|
| Transmissions: | 8-speed synchronized shuttle
|
| | 8-speed synchromesh
|
| Photos |

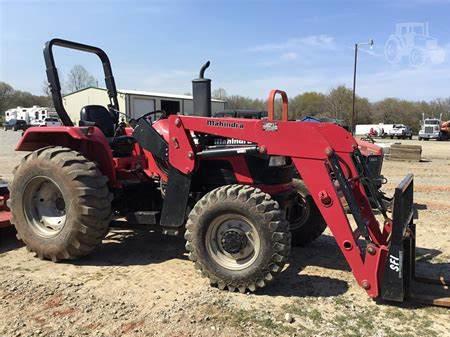

| | Mahindra 5530 photos... |
| Hydraulics |
| Type: | open center
|
| Valves: | 1 or 2
|
| Pump flow: | 10.6 gpm
40.1 lpm
|
| Steering flow: | 4.5 gpm
17.0 lpm
|
| Tractor hitch |
| Rear Type: | 1/2
|
| Control: | position and draft control
|
| Rear lift: | 3,968 lbs
1799 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Engine RPM: | 540@2059
|
| Dimensions & Tires |
| Weight: | 5464 to 5976 pounds
|
| Front tire: | 7.5x16
|
| Rear tire: | 14.9x28 (2WD)
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 55
|
| Batteries: | 12
|
| Battery volts: | 12
|
| Battery AH: | 96
|
|
