Marshall 264 Tractors

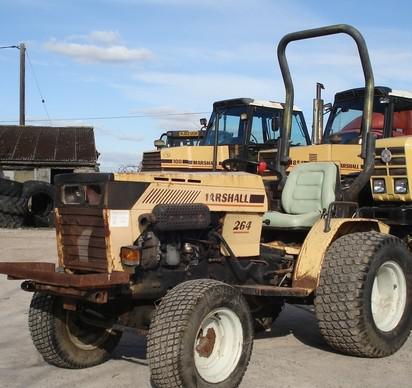

Marshall 264
Power: 25 hp
Date of manufacture :
1987 - 1997
Production
Distributor:Marshall
Manufacturer:Ferrari
Type:Compact Utility tractor
Marshall 264 Power
Engine:25.8 hp
19.2 kW
Marshall 264 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:manual
Brakes:mechanical drum
Cab:Two-post fixed ROPS.
Transmissions:6-speed gear
 12-speed gear
Hydraulics
Type:open center
Pressure:2400 psi
165.5 bar
Valves:2
Pump flow:3.2 gpm
12.1 lpm
Tractor hitch
Rear Type:I
Rear lift (at ends):1210 lbs
548 kg
Power Take-off (PTO)
Rear RPM:540/1000 (1.375)
Engine RPM:540@2700
1000@2700
Dimensions & Tires
Wheelbase:54.2 inches
137 cm
Weight:1545 lbs
700 kg
Front tire:6.00-12
Rear tire:8.25-16
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:generator
Battery volts:12
