Navigation: Home > Massey Ferguson > 1160
Massey Ferguson 1160 Tractors
 |
|
Power: 41 hp
Date of manufacture : 1992 - 1999 |
| Production |
| Manufacturer: | Massey Ferguson
|
| Type: | Compact Utility tractor
|
| Original price: | $24,700 (1999 )
|
| Massey Ferguson 1160 Power |
| Engine: | 41 hp
30.6 kW
|
| PTO (claimed): | 37 hp
27.6 kW
|
| Massey Ferguson 1160 Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | mechanical wet disc
|
| Cab: | Two-post ROPS.
|
| Transmission: | 16-speed synchronized shuttle
|
| Photos |

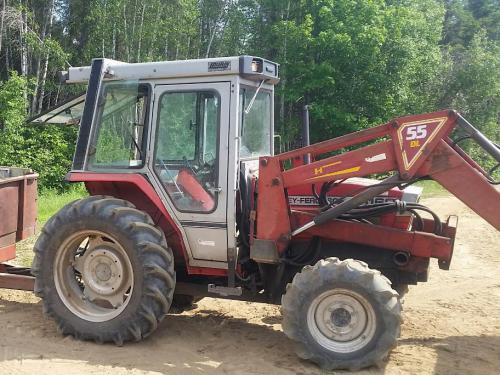

| | Massey Ferguson 1160 photos... |
| Capacity |
| Fuel: | 12.7 gal
48.1 L
|
| Hydraulic system: | 7.7 gal
29.1 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 7.7 gal
29.1 L
|
| Pressure: | 2275 psi
156.9 bar
|
| Valves: | 0 to 2
|
| Pump flow: | 8.2 gpm
31.0 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | draft, position, and response control
|
| Rear lift (at ends): | 3086 lbs
1399 kg
|
| Rear lift (at 24"/610mm): | 2600 lbs
1179 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540 (1.375)
|
| Dimensions & Tires |
| Wheelbase: | 74.8 inches
189 cm
|
| Weight: | 3848 lbs
1745 kg
|
| Front tire: | 9.5x16
|
| Rear tire: | 13.6x28
|
| 1160 Serial Numbers |
| 1992: | A70101
|
| 1993: | B70101
|
| 1994: | C00101
|
| 1995: | D00101
|
| 1996: | E00101
|
| 1997: | F01001
|
| 1998: | G01001
|
| 1999: | H01001
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 45
|
| Battery CCA: | 662
|
| Battery volts: | 12
|
|
