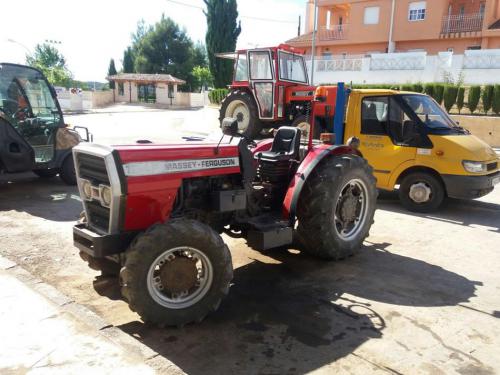

Massey Ferguson 194F Tractors
 |
|
Power: 75 hp[P]
Date of manufacture : 1986 - 1989 |
| Production |
| Manufacturer: | Massey Ferguson
|
| Type: | Orchard/Vineyard tractor
|
| Massey Ferguson 194F Power |
| PTO (claimed): | 68 hp
50.7 kW
|
| Massey Ferguson 194F Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | outboard planetary
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Open operator station.
|
| Transmissions: | 12-speed partially synchronized
|
| | 20-speed creeper
|
| Capacity |
| Fuel: | 16 gal
60.6 L
|
| Hydraulic system: | 10 gal
37.9 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 10 gal
37.9 L
|
| Rear valves: | 2
|
| Pump flow: | 9 gpm
34.1 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | position and draft control
|
| Rear lift (at ends): | 5291 lbs
2399 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000 (1.375)
|
| Dimensions & Tires |
| 2WD Wheelbase: | 81.5 inches
207 cm
|
| 4WD Wheelbase: | 79.3 inches
201 cm
|
| Weight: | 5104 to 5357 pounds
|
| Front tire: | 7.50-16
|
| 2WD Rear tire: | 16.9-24
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 45
|
| Battery volts: | 12
|
|
