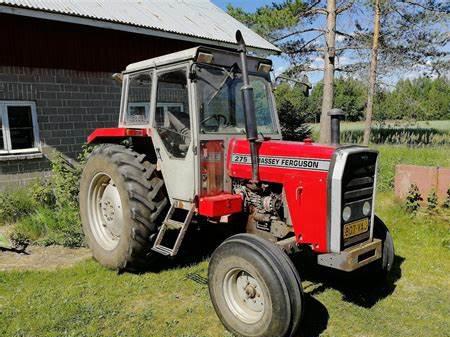

Massey Ferguson 275 Tractors
 |
|
Power: 74 hp[P]
Date of manufacture : 1975 - 1983 |
| Production |
| Manufacturer: | Massey Ferguson
|
| Type: | Row-Crop tractor
|
| Original price: | $21,000 (1983 )
|
| Massey Ferguson 275 Power |
| Drawbar (claimed): | 60 hp
44.7 kW
|
| PTO (claimed): | 67 hp
50.0 kW
|
| Drawbar (tested): | 59.73 hp
44.5 kW
|
| PTO (tested): | 67.43 hp
50.3 kW
|
| Massey Ferguson 275 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | differential mechanical dry discs
|
| Cab: | Two-post ROPS, canopy optional.
|
| Transmissions: | 8-speed gear
|
| | 12-speed partial power shift
|
| Photos |
| | Massey Ferguson 275 photos... |
| Capacity |
| Fuel: | 18.5 gal
70.0 L
|
| Hydraulic system: | 8 gal
30.3 L
|
| Hydraulics |
| Capacity: | 8 gal
30.3 L
|
| Pressure: | 2300 psi
158.6 bar
|
| Valves: | 0 to 2
|
| Pump flow: | 10 gpm
37.9 lpm
|
| | 4.5 gpm
17.0 lpm (3-point)
|
| Total flow: | 19.5 gpm
73.8 lpm
|
| Steering flow: | 5 gpm
18.9 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Rear lift: | 4100 lbs
1859 kg
|
| Power Take-off (PTO) |
| Rear PTO: | live*Two-stage clutch
|
| | independent*Optional
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 82 inches
208 cm
|
| Weight: | 6100 to 6610 pounds
|
| Front tire: | 6.00-16
|
| Rear tire: | 16.9-24
|
| 275 Serial Numbers |
| 1975: | 9A207681
|
| 1976: | 9A232539
|
| 1977: | 9A257837
|
| 1978: | 9A280301
|
| 1979: | 9A300200
|
| 1980: | 9A326169
|
| 1981: | 9A339343
|
| 1982: | 9A350584
|
| 1983: | 9A354679
|
how to read serial numbers...
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 37
|
| Battery volts: | 12
|
| Battery AH: | 180
|
|
