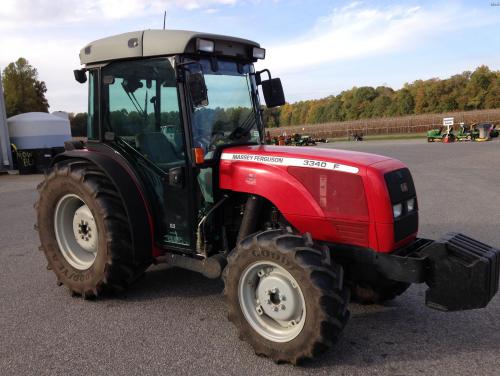

Massey Ferguson 3340 Tractors
 |
|
Power: 79 hp
Date of manufacture : 2001 - 2003 |
| Production |
| Manufacturer: | Massey Ferguson
|
| Type: | Orchard/Vineyard tractor
|
| Massey Ferguson 3340 Power |
| Engine: | 79.1 hp
59.0 kW
|
| Massey Ferguson 3340 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | hydraulic front and rear
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Trailer brakes: | hydraulic*Optional
|
| Cab: | Two-post mid-mount ROPS. Cab optional with available air-conditioning.
|
| Transmissions: | 16-speed sync shuttle
|
| | 24-speed sync shuttle
|
| | 30-speed sync shuttle
|
| | 36-speed power shift
|
| Hydraulics |
| Type: | open center
|
| Pressure: | 2611 psi
180.0 bar
|
| Rear valves: | 2 or 3
|
| Mid valves: | 2*Optional
|
| Pump flow: | 11.6 gpm
43.9 lpm
|
| | 13.7 gpm
51.9 lpm *Optional high flow pump.
|
| | 15.3 gpm
57.9 lpm *Combined flow of optional tandem pumps.
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | position and draft control
|
| Rear lift: | 5732 lbs
2600 kg
|
| Front lift: | 3307 lbs
1500 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540/540E (1.375)
|
| | 540/1000 (1.375)*Optional
|
| Engine RPM: | 540@1967
540E@1560
1000@2043
|
| Front PTO: | independent*Optional
|
| Front RPM: | 1000 (1.375)
|
| Dimensions & Tires |
| 2WD Wheelbase: | 81.9 inches
208 cm
|
| 4WD Wheelbase: | 82.7 inches
210 cm
|
| Weight: | 4740 to 5512 pounds
|
| Front tire: | 6.50R16
|
| 3340V 4WD Rear tire: | 11.2R28
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
