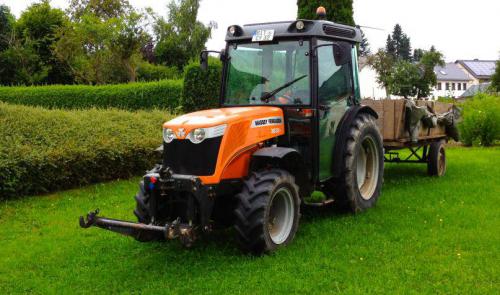

Massey Ferguson 3635F Tractors
 |
|
Power: 80 hp
Date of manufacture : 2011 - 2017 |
| Production |
| Manufacturer: | Massey Ferguson
|
| Type: | Utility tractor
|
| Variants |
| 3635F: | flex
|
| 3635S: | special
|
| 3635V: | vineyard
|
| 3635GE: | ground effect
|
| Massey Ferguson 3635F Power |
| Engine (gross): | 80 hp
59.7 kW
|
| Massey Ferguson 3635F Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | electro-hydraulic rear
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Trailer brakes: | hydraulic*Optional
|
| Cab: | Two-post ROPS. Cab available with air-condtioning.
|
| Transmissions: | 12-speed mechanical shuttle
|
| | 24-speed mechanical shuttle
|
| Hydraulics |
| Pressure: | 2756 psi
190.0 bar
|
| Rear valves: | 2 or 3
|
| Mid valves: | 2
|
| Pump flow: | 16.4 gpm
62.1 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | position and top-link draft control
|
| Rear lift (at ends): | 5512 lbs
2500 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540 (1.375)
|
| | 540/1000 (1.375)
|
| Engine RPM: | 540@1938
1000@1962
|
| Dimensions & Tires |
| Wheelbase: | 84.6 inches
214 cm
|
| Weight: | 6085 to 6559 pounds
|
| Front tire: | 6.50R16
|
| 2WD Rear tire: | 320/85R28
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
