Massey Ferguson 384S Tractors

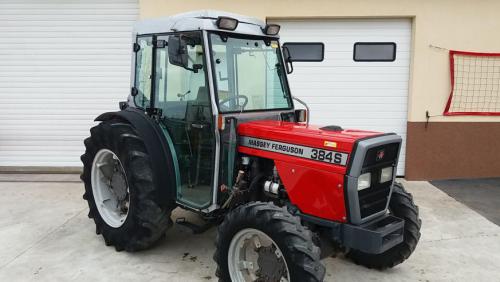

Massey Ferguson 384S
Power: 72 hp[P]
Date of manufacture :
1994 - 1999
Production
Manufacturer:Massey Ferguson
Type:Orchard/Vineyard tractor
Factory:Italy
Original price:$25,300 (1999 )
Variants
384S:narrow
384GE:low profile
384V:ultra-narrow
384HC:high clearance
Massey Ferguson 384S Power
PTO (claimed):65 hp
48.5 kW
Massey Ferguson 384S Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:electro-hydraulic front and rear
Steering:power
Brakes:hydraulic wet disc
Cab:Two-post mid-mount ROPS. Cab available.
Transmissions:12-speed synchro
 12-speed shuttle
 24-speed creeper
Hydraulics
Rear valves:2
Front valves:3*Optional
Pump flow:11.2 gpm
42.4 lpm
 14.3 gpm
54.1 lpm *Optional
Tractor hitch
Rear Type:II/I
Rear lift (at ends):5732 lbs
2600 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/750
 540/1000
Engine RPM:540@1960
Dimensions & Tires
2WD Wheelbase:81.5 inches
207 cm
4WD Wheelbase:79.3 inches
201 cm
Weight:5181 to 5512 pounds
Front tire:7.5L-15
2WD Rear tire:14.9-24
Electrical
Ground:negative
Battery volts:12
