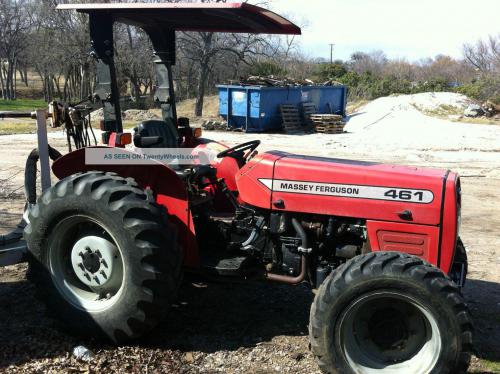

Massey Ferguson 461 Tractors
 |
|
Power: 75 hp
Date of manufacture : 2004 - 2005 |
| Production |
| Manufacturer: | Massey Ferguson
|
| Type: | Utility tractor
|
| Factory: | Turkey
|
| Massey Ferguson 461 Power |
| Engine (gross): | 75 hp
55.9 kW
|
| PTO (claimed): | 55 hp
41.0 kW
|
| Massey Ferguson 461 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | planetary
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Flat-deck platform with two-post folding ROPS.
|
| Transmission: | 8-speed synchronized shuttle
|
| Photos |
| | Massey Ferguson 461 photos... |
| Hydraulics |
| Type: | open center
|
| Valves: | 2
|
| Pump flow: | 4.4 gpm
16.7 lpm (3-point)
|
| | 9.0 gpm
34.1 lpm (aux)
|
| SCV flow: | 9.0 gpm
34.1 lpm
|
| | 13.4 gpm
50.7 lpm *Total flow with optional combining valve.
|
| Total flow: | 18.9 gpm
71.5 lpm
|
| Steering flow: | 5.5 gpm
20.8 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | position control and top-link draft sensing
|
| Rear lift: | 2711 lbs
1229 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | hydraulic wet disc
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 76.4 inches
194 cm
|
| Weight: | 4962 to 5456 pounds
|
| 461 Serial Numbers |
| Location: | Serial number plate on the left side of the tractor's dashboard.
|
photo of 461 serial number
| | 2004: | EN00001
|
| 2005: | EP00001
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
