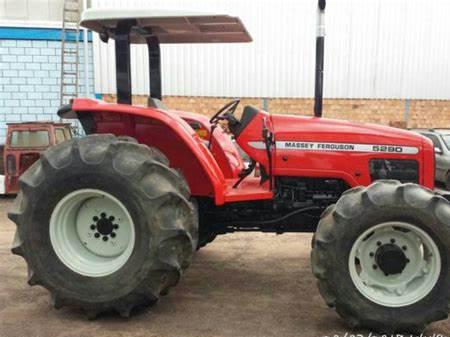

Massey Ferguson 5290 Tractors
 |
|
Power: 88 hp
Date of manufacture : 2002 - 2009 |
| Production |
| Manufacturer: | Massey Ferguson (a part of AGCO)
|
| Type: | Utility tractor
|
| Factory: | Canoas, Brazil
|
| Massey Ferguson 5290 Power |
| Engine: | 88 hp
65.6 kW
|
| Massey Ferguson 5290 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | planetary
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post ROPS.
|
| Transmissions: | 12-speed
|
| | 18-speed
|
| Capacity |
| Fuel: | 26.4 gal
99.9 L
|
| Hydraulic system: | 11.8 gal
44.7 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 11.8 gal
44.7 L
|
| Pressure: | 2176 psi
150.0 bar
|
| Valves: | 1 or 2
|
| Total flow: | 11.1 gpm
42.0 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position and depth control
|
| Rear lift: | 5512 lbs
2500 kg
|
| | 7055 lbs
3200 kg *Optional
|
| Power Take-off (PTO) |
| Rear PTO: | transmission
|
| | independent*Optional
|
| Clutch: | 254mm dry disc
|
| Rear RPM: | 540 (1.375)
|
| | 540/1000 (1.375)
|
| Engine RPM: | 540@1900
|
| Dimensions & Tires |
| 2WD Wheelbase: | 89.1 inches
226 cm
|
| 4WD Wheelbase: | 89.3 inches
226 cm
|
| Weight: | 10362 to 11244 pounds
|
| Front tire: | 7.50-16
|
| 2WD Rear tire: | 18.4-30
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 35
|
| Battery volts: | 12
|
| Battery AH: | 90
|
|
