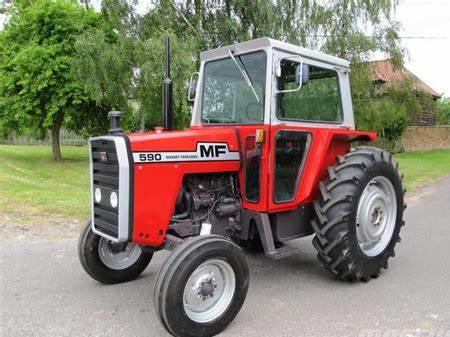

Massey Ferguson 590 Tractors
 |
|
Power: 75 hp
Date of manufacture : 1977 - 1982 |
| Production |
| Manufacturer: | Massey Ferguson
|
| Type: | Row-Crop tractor
|
| Factory: | Coventry, England
|
| Variants |
| 590: | naturally-aspirated
|
| 590T: | turbocharged
|
| Massey Ferguson 590 Power |
| Engine: | 75 hp
55.9 kW
|
| PTO (claimed): | 67.7 hp
50.5 kW
|
| Massey Ferguson 590 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Cab standard with heater. ROPS available.
|
| Transmissions: | 8-speed gear
|
| | 12-speed two-speed power shift
|
| Photos |
| | Massey Ferguson 590 photos... |
| Hydraulics |
| Pump flow: | 6.8 gpm
25.7 lpm (main)
|
| | 9.2 gpm
34.8 lpm (aux.)
|
| Tractor hitch |
| Rear Type: | II
|
| Rear lift (at 24"/610mm): | 4900 lbs
2222 kg
|
| | 5818 lbs
2639 kg *Optional
|
| Power Take-off (PTO) |
| Rear PTO: | live
|
| | independent optional
|
| Clutch: | mechanical dry disc (live)
|
| | hydraulic (independent)
|
| Rear RPM: | 540 (1.375)
|
| | 1000 (1.375)
|
| Engine RPM: | 540@1893
1000@1900
|
| Dimensions & Tires |
| Wheelbase: | 90 inches
228 cm
|
| Weight: | 6660 to 7830 pounds
|
| Front tire: | 7.50-18
|
| Rear tire: | 16.9-34 (2WD)
|
| Full dimensions and tires ... | |
