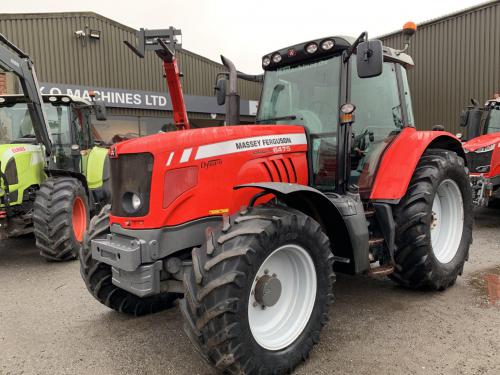

Massey Ferguson 6475 Tractors
 |
|
Power: 133 hp
Date of manufacture : 2004 - 2012 |
| Production |
| Manufacturer: | Massey Ferguson
|
| Type: | Row-Crop tractor
|
| Factory: | Beauvais, France
|
| Variants |
| 6475: | Dyna-6
|
| 7475: | Dyna-VT
|
| Massey Ferguson 6475 Power |
| Engine: | 133 hp
99.2 kW
|
| PTO (claimed): | 105 hp
78.3 kW
|
| Drawbar (tested): | 79.1 hp
59.0 kW
|
| PTO (tested): | 113.3 hp
84.5 kW
|
| Massey Ferguson 6475 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | independent hydraulic wet disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmissions: | 24-speed six-speed power shift
|
| | 32-speed creeper
|
| Photos |
| | Massey Ferguson 6475 photos... |
| Hydraulics |
| Type: | closed center PFC
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 3 to 5
|
| Total flow: | 29 gpm
109.8 lpm
|
| Tractor hitch |
| Rear Type: | II/IIIN
|
| Rear lift (at 24"/610mm): | 9,391 lbs
4259 kg
|
| Front Hitch: | optional
|
| Front lift: | 7,000 lbs
3175 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/540E/1000
|
| Dimensions & Tires |
| 2WD Wheelbase: | 109.4 inches
277 cm
|
| 4WD Wheelbase: | 109.5 inches
278 cm
|
| Weight: | 11052 to 13215 pounds
|
| Front tire: | 14.9R28
|
| Rear tire: | 18.4R38
|
| Electrical |
| Ground: | negative
|
| Charging amps: | 120
|
| Battery volts: | 12
|
|
