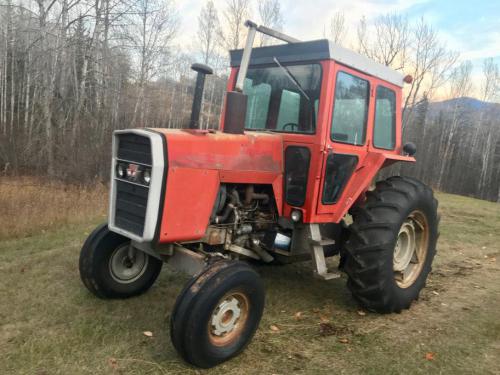

Massey Ferguson 670 Tractors
 |
|
Power: 62 hp[P]
Date of manufacture : 1983 - 1986 |
| Production |
| Manufacturer: | Massey Ferguson
|
| Type: | Utility tractor
|
| Factory: | Beauvais, France
|
| Original price: | $26,000 (1986)
|
| Massey Ferguson 670 Power |
| Drawbar (claimed): | 46 hp
34.3 kW
|
| PTO (claimed): | 56 hp
41.8 kW
|
| Drawbar (tested): | 46.28 hp
34.5 kW
|
| PTO (tested): | 55.62 hp
41.5 kW
|
| Massey Ferguson 670 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | outboard planetary
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard with available air-conditioning.
|
| Transmission: | 12-speed
|
| Photos |
| | Massey Ferguson 670 photos... |
| Hydraulics |
| Type: | open center
|
| Valves: | 2
|
| Total flow: | 17 gpm
64.3 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position and draft control
|
| Rear lift (at 24"/610mm): | 4440 lbs
2013 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 90 inches
228 cm
|
| Weight: | 8,720 lbs
3955 kg
|
| Front tire: | 7.50x16
|
| 2WD Rear tire: | 15.5x38
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
|
